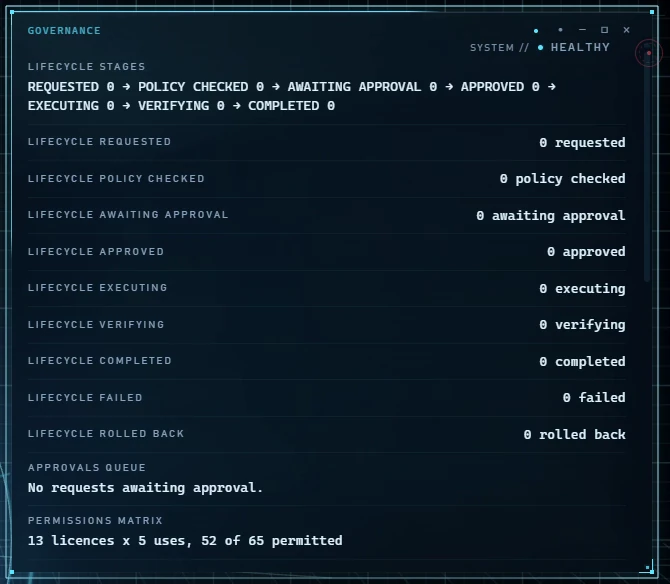

The governance panel: lifecycle stages, an empty approvals queue, and 52 of 65 permissions granted.

Governance and safety

Every effect JARVIS can have, from any origin, passes through one fail-closed kernel. The E-stop is checked first and repeatedly, approvals are bound to the exact object, and nothing counts as done until the world has been read back.

LIVE-PROVEN , rung 6 of 8 Fail-closed policy, the E-stop and the prompt-injection detector were recorded LIVE by registry probes on 17 September 2026, which is historical under the 24-hour rule. Action verification was proven live on 16 September 2026. The other governance rows are TESTED.

PARTIAL Parts of this system sit at different rungs. The breakdown below shows each one.

As of
Parts tracked
7
Catalogued capabilities
28
Real capture, captured 22 September 2026. The owner’s view of governance: lifecycle stages, the approvals queue and the permissions matrix (13 licences × 5 uses, 52 of 65 permitted). ShowsThe HUD shows the policy posture and the approvals queue from the governance kernel. Does not showNothing was awaiting approval, and the lifecycle counters read zero for this session’s actions, so this shows the panel, not an approval being made.
What happens, step by step
  1. 0:00 The governance panel: action lifecycle stages, an empty approvals queue, 52 of 65 permissions granted

Captured at revision 893913a9c

The governance panel: lifecycle stages, an empty approvals queue, and 52 of 65 permissions granted.
Real capture, captured 22 September 2026. Lifecycle, approvals and permissions as the owner sees them.

Captured at revision 893913a9c

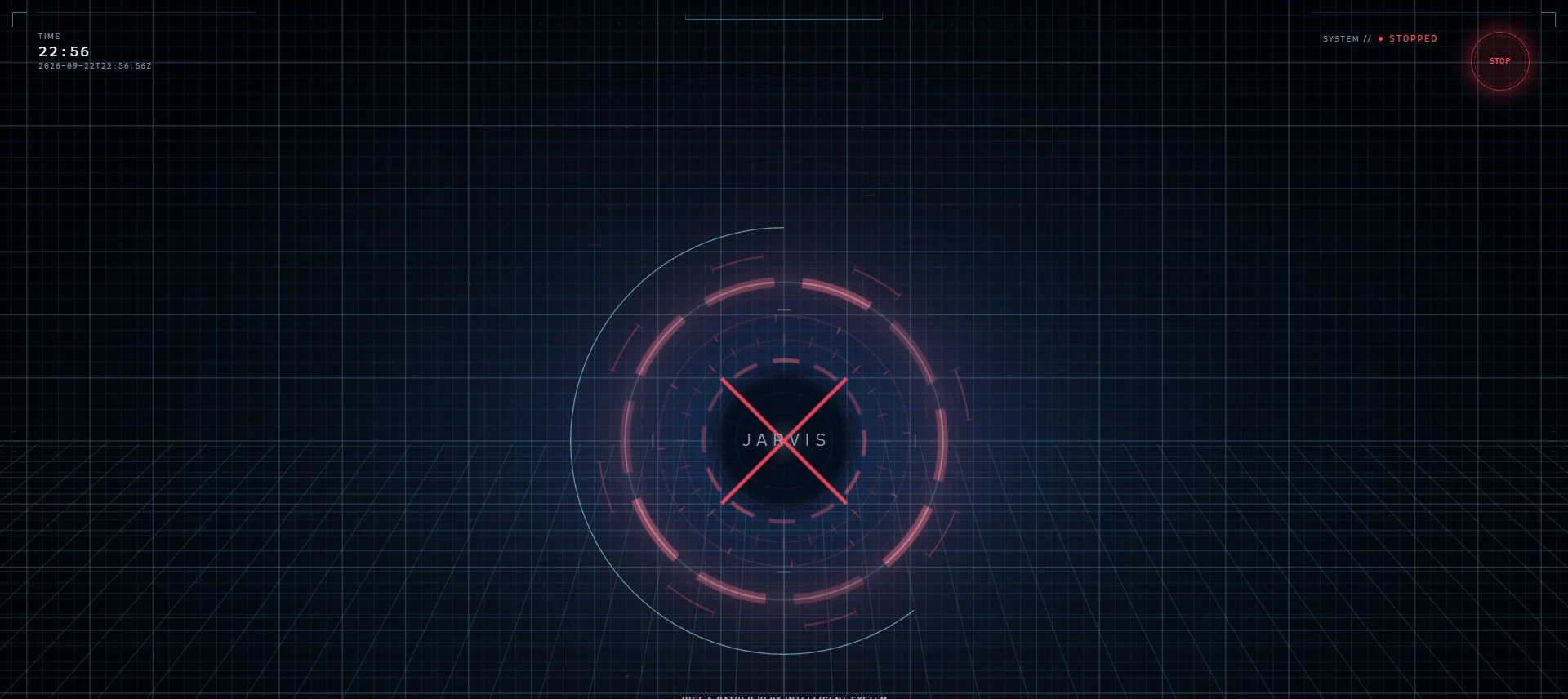

The HUD in the emergency-stop state: a red core ring crossed out, SYSTEM STOPPED, a glowing STOP control, presence reported estopped.
Real capture, captured 22 September 2026. After “Emergency stop.”: everything stopped and latched until an explicit re-arm.

Captured at revision 893913a9c

Status breakdown

Where each part stands

4 live-proven 2 tested 1 implemented

  1. Fail-closed policy engine Registry health-route probe on a booted process, 2026-09-17T22:33Z. Historical after 24 h.
    LIVE-PROVEN , rung 6 of 8 OBSERVED Where: Production branch
  2. E-stop latch Registry probe LIVE 2026-09-17; historical. The latch persists across restarts and an unreadable latch counts as engaged.
    LIVE-PROVEN , rung 6 of 8 OBSERVED Where: Production branch
  3. Prompt-injection detector Registry probe LIVE 2026-09-17; historical after 24 h.
    LIVE-PROVEN , rung 6 of 8 OBSERVED Where: Production branch
  4. Action verification (observe against expectation) Capability model rows SECURITY/AUTHORITY and ACTION VERIFICATION driven live 2026-09-16. Historical reading.
    LIVE-PROVEN , rung 6 of 8 OBSERVED Where: Production branch
  5. Approvals: bound, expiring, single-use Six named approval attacks covered by the security test suite.
    TESTED , rung 3 of 8 TESTED Where: Production branch
  6. Audit trail, action ledger, evidence store Remaining governance registry rows are TESTED.
    TESTED , rung 3 of 8 TESTED Where: Production branch
  7. Intent contract for consequential multi-step plans On 2026-09-18 no production code constructed the intent ledger, so such plans were refused. Later work targeted this gap; whether it is closed is uncertain.
    IMPLEMENTED , rung 2 of 8 DOCUMENTED Where: Production branch

Pipeline

How it flows

A model-proposed step, as implemented

  1. ToolProposal carries no authority
  2. Intent contract consequential missions only (can stop the request)
  3. Grant allowlist REFUSED_UNAUTHORISED (can stop the request)
  4. Barge-in check ABANDONED_ON_BARGE_IN (can stop the request)
  5. E-stop STOPPED_BY_ESTOP (can stop the request)
  6. Irreversible guard REFUSED_IRREVERSIBLE (can stop the request)
  7. PolicyEngine.decide fail-closed; exceptions become DENY (can stop the request)
  8. Executor normalise, expect, read, act, observe
  9. Verification halts on anything but VERIFIED (can stop the request)
  10. Receipt true, false or unknown
  11. Lifecycle COMPLETED only via VERIFYING
Amber-marked steps can stop the request. The E-stop appears more than once on purpose.

Inside PolicyEngine.decide

  1. E-stop (can stop the request)
  2. Device consent (can stop the request)
  3. Owner-root path check (can stop the request)
  4. Proof-gated self-improvement (can stop the request)
  5. Standing authority ALLOW
  6. Approval required consume approval or NEEDS_APPROVAL (can stop the request)
  7. Otherwise DENY
A fixed internal order. The first rule that applies decides.

Diagrams are simplified from the code paths named in the sources below. They are illustrative, not screenshots.

Governance in JARVIS is not a filter in front of the model. It is the only route to the world. A model proposal, a mission step, an automation, a gesture or a protocol message all reach effects through the same fail-closed kernel. The constitution forbids a parallel architecture, so there is exactly one of each piece: one PolicyEngine, one ApprovalRegistry, one EStop, one IntentLedger, one AuditTrail, one EvidenceStore, one ActionLedger and one ProviderGateway.

Why insist on one of each? Two policy engines can disagree. Two approval stores can each hold a different truth. A safety property that holds in one path and not another does not hold. A single kernel means a fix made once applies everywhere.

The chain as implemented

The simplified story usually drawn is “proposal, validator, policy, approvals, E-stop, executor, observation, receipt”. The code differs from that story in three ways. The E-stop comes first and is checked repeatedly. Approvals are consumed inside the policy decision. The “validator” is several layers. For a model-composed step, the order is:

  1. Proposal. The model’s suggestion becomes a ToolProposal. It carries no authority.
  2. Intent contract. Only consequential missions need one. It is versioned, it was shown to the owner, and it cannot change while it is executing.
  3. Grant allowlist. A command that has not been granted is refused as unauthorised.
  4. Barge-in check. If the owner has interrupted, the plan is abandoned at the step boundary. No effect is left half-applied.
  5. E-stop. If the E-stop is engaged, the step stops here.
  6. Irreversible guard. Irreversible action classes can be refused outright at this point.
  7. Policy decision. PolicyEngine.decide runs. Any unexpected exception inside it becomes DENY.
  8. Executor. The command is normalised, the expected state is computed, the world is read before acting, the effect runs (its return value is discarded), and the world is observed again.
  9. Verification. Observed state is compared with expected state.
  10. Receipt. The outcome is recorded and stored as evidence.
  11. Lifecycle. The action ledger records every stage.

Each command also normalises its own inputs. That is one more layer of “validation” that sits inside the command rather than in the chain.

Inside the policy decision

PolicyEngine.decide works in a fixed order. It checks the E-stop again. Then it checks device consent, then whether a path lies inside the owner’s permitted roots, then whether a self-improvement is backed by proof. Only after those checks can standing authority allow the action. If the action class needs approval, the registry tries to consume a matching approval, and if there is none the answer is NEEDS_APPROVAL. Anything else is denied. Every decision is appended to the hash-chained audit trail and opens an item in the action ledger.

Verification, receipts and lifecycle

A step ends in one of five outcomes: VERIFIED, REJECTED, UNVERIFIED, FAILED or REFUSED. A plan halts on anything but VERIFIED. The receipt records whether the effect is true, false or unknown. Its artifacts go into the append-only evidence store. A separate verification service can later corroborate a result as VERIFIED or REFUTED, or leave it COMPLETED_UNVERIFIED.

The action lifecycle is REQUESTED, POLICY_CHECKED, AWAITING_APPROVAL, APPROVED, EXECUTING, VERIFYING, then COMPLETED, or else FAILED or ROLLED_BACK. COMPLETED cannot be reached without passing through VERIFYING.

Approvals

An approval in JARVIS is narrower than “yes, go ahead”. Each one is:

  • Owner-bound. Only the owner can grant it.
  • Action-bound. It covers one action.
  • Object-bound. It carries a SHA-256 hash of a canonical description of the target, so swapping the object after approval invalidates it.
  • Expiry-bound. It lasts five minutes by default.
  • Non-replayable. It is consumed on use.

Twelve action classes always require approval. They include sending messages, publishing, deleting data, changing credentials, bulk downloads, unrestricted shell, hardware actuation, printing and mutating desktop controls. An action that needs approval can never acquire standing authority. The security suite tests six named attacks on approvals. No approval can override the E-stop.

The E-stop can be triggered by hotkey, from the HUD or by voice, and it silences speech and cancels missions and effects. The constitution sets it a budget of under 150 ms mid-utterance. That is a target. The one related measurement, a 31 ms spin-stop on the Advanced Systems branch, was explicitly labelled as not a worst-case qualification.

Side doors reuse the kernel

Paths that do not start with the model still pass through the same pieces:

  • Automation. The automation boundary calls PolicyEngine.decide first and can only narrow the result, never widen it.
  • Autonomy envelope. Hard boundaries cannot be widened.
  • Network. Outbound calls go in this order: E-stop, host allowlist, a server-side request forgery check, policy, budget reservation, the call, and reconciliation.
  • Gestures and protocols. Both follow the same path as a model proposal. See perception.

Five distinctions the system never collapses

These pairs look alike and are treated as different things everywhere in JARVIS.

DISPATCHED is not VERIFIED

Sending a command proves nothing about its effect. When JARVIS opens an application, the step counts as VERIFIED only if an independent re-read of the desktop matches what was expected. On the desktop, a window move whose re-read geometry does not match is rolled back, not reported as done. A generic “invoke” with no independent check that the application reached its goal stays UNVERIFIED.

SIMULATED is not EXECUTED

A mission can be simulated before it runs. The simulation route labels its output SIMULATED / not_proof and has no effects. A clean simulation does not let the real run skip a single gate. The same rule applies to slicer print-time estimates on the engineering page.

HTTP SUCCESS is not EFFECT SUCCESS

A 200 response means a request was accepted, not that the world changed. For this reason the executor discards an effect’s return value and reads the world back instead. When an effect returned but the observer could not read back its result, the HUD shows COMPLETED-UNVERIFIED, never green. Handing a print job to the printer path is described in the project’s own words as asking, not doing.

STALE is not CURRENT

Evidence expires. A resolved window target holds a 20-second identity lease. After that, an action on it is refused with “target identity is unknown or expired”. Capability registry LIVE states decay after 24 hours. A referent in conversation that has gone stale becomes a question, not a guess.

CAPABILITY is not AUTHORITY

Being able to do something is not permission to do it. The capability registry separates what exists from what is GRANTED or WITHHELD. On the Advanced Systems branch, capability discovery “has no execution or grant method”, so asking what JARVIS can do cannot cause anything to happen. Specialist roles are scope ceilings, not permissions. See agents.

What is not proven yet

  • Live readings are historical. The governance LIVE states date from 17 September 2026 and have decayed under the 24-hour rule.
  • Most governance rows are TESTED, not live. This includes approvals, the audit trail and the evidence store. Their tests pass, but no dated live probe is on record.
  • The intent-ledger gap is uncertain. Notes from 18 September 2026 recorded that production did not construct the intent ledger, so multi-step plans containing an irreversible command were refused. That failure mode is safe, but it limits what JARVIS can do. Later work targeted the gap, and whether it is fully closed is uncertain.
  • The E-stop’s 150 ms budget has not been qualified at worst case.
  • Nothing here is formally verified. The properties above rest on code review, tests and bounded live probes, not machine-checked proofs.

Invariants

Rules the code enforces

  • No approval can override E-Stop.

    jarvis/governance/ (E-stop rules)

  • THE MODEL PROPOSES; THE RUNTIME DISPOSES.

    jarvis/cognition/compose.py

  • A dispatch that did not verify stays unverified.

    Advanced Systems cognition lane (branch, not merged)

  • Simulation never grants authority or certifies effects.

    docs/ledger/CURRENT_BODY_EVIDENCE_MATRIX.md (A44)

  • PREPARING A HANDOFF IS ASKING, NOT DOING.

    Advanced Systems fabrication lane (branch, not merged)

Capabilities

Related capabilities

All 28 catalogued capabilities in this area
